  • Products

LASER SCANNER PRODUCTS

Our Laser Scanners & Machine Vision Software

Q6 high-performance laser scanner for 2D and 3D measurements

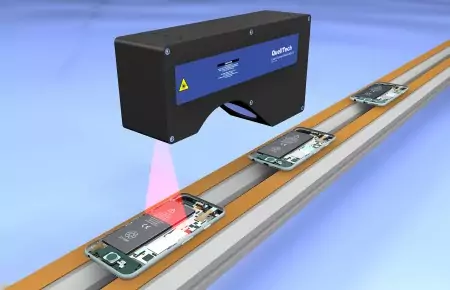

PCB-Inspection

Q6 Laser Scanner, a high-performance laser scanner for demanding measurement tasks.

The QuellTech Q6 Laser Scanner product series has proven itself in demanding industrial applications. High resolution down to 2μm, fast profile rates of up to 20,000 profiles/s. Measuring ranges from 45 mm to 1000 mm. which require a high degree of precision, process stability and high traverse speeds. Scalable for multi-scanner applications.

Q6 Laser Scanner

Q5 Laser Scanner for 2D and 3D measurements

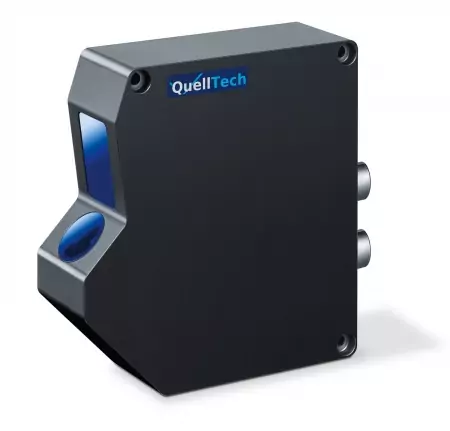

Q5 Laser Scanner series Q5

Q5 Lasers Scanner, a compact laser sensor for the medium power segment.

The Q5 product series is also suitable for harsh environments with extraneous light, high temperatures and weld spatter. Optimally high laser powers enable measurements on light-absorbing materials.  Scan rates of up to 14,000 profiles/s and resolutions down to 3μ can be achieved.  Measuring ranges from 5mm to 1000 mm.

Q5 Laser Scanner

Q4 Laser Scanner for 2D and 3D measurements

Phone Gap and Surface Check Inspection with Laser Scanner

Q4 Laser-Scanner a very compact laser scanner for medium process speeds and special space requirements.

The Q4 product series can cover a wide range of standard measurement applications such as inline weld seam tracking and weld seam inspection. In confined spaces, housing shapes are possible, from a size of 86x40x25 mm with a weight of 140 g (Q4-80S).

Q4 Laser Scanner

2D/3D Machine Vision Software Products

  • Machine Vision Software
  • Machine Vision Software
PreviousNext

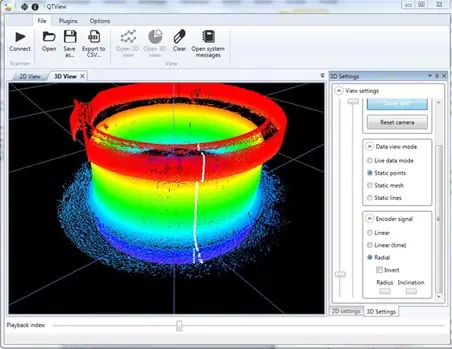

2D/3D Software Solution

The QuellTech 2D/3D Software Solution enables shorter development times for customer-specific measurement applications. We offer a complete software solution that allows the user to make his own changes after implementation.

2D / 3D Software

Accessories

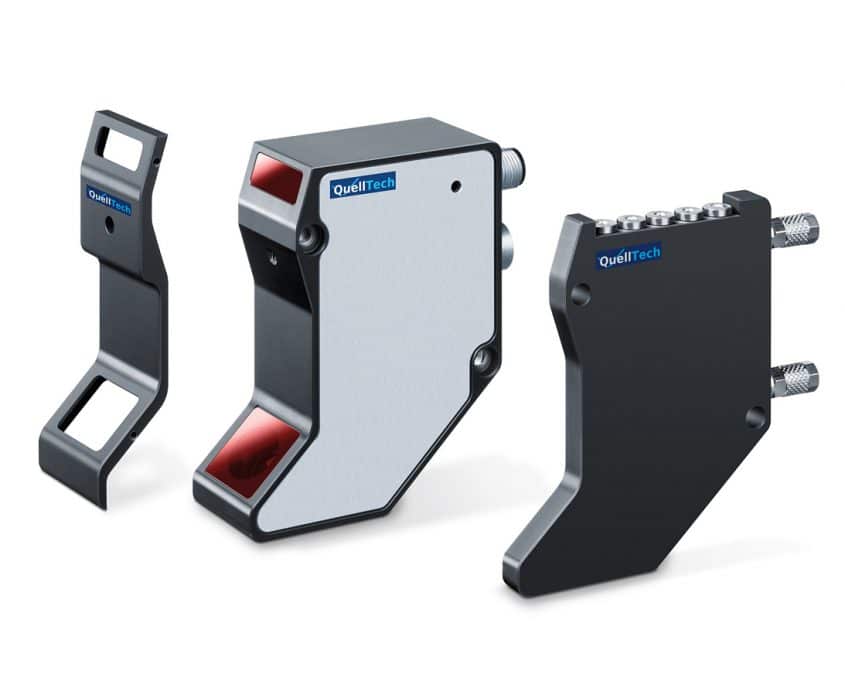

Q4 Laser Scanner with protective glass and cooling module

Accessories for Q4 lasers

Specially adapted accessory solutions for the protection and cooling of the sensor ensure maximum efficiency and user friendliness.

Accessories

Please contact:

Stefan Ringwald
Phone: +49 89 12472375

» Contact form

Application videos:

Icon Video Gallery

Scanner-Comparison:

Laser-Specs Comparison

Here you will find the specifications of all QuellTech laser scanners in comparison.

Latest applications

  • Inspection of Seal Surfaces 2 Inspection of Seal Surfaces25. March 2022 - 10:23
  • Radius measurement Q-FIN Radius measurement after deburring and edge rounding sheet metal parts22. October 2021 - 14:18
  • Detecting coordinates of tread groove and peak on tire tread Detecting coordinates of tread groove and peak on tires3. August 2020 - 15:04
  • Continuous casting plant Q5 Laser Scanner Measuring height and width of glowing steel castings21. April 2020 - 9:52
  • 3D point clouds of surface imperfection of low depth and large area on steel plate Detection of ultra-fine surface imperfection on large measuring objects24. July 2019 - 10:05
  • Contact Pins in Electronic Assemblies Verification of Correct Position of Contact Pins in Electronic Assemblies31. January 2019 - 10:58
  • Plastic mold parts inspection Testing of plastic molded parts in vehicle technology (control components)16. October 2018 - 14:11

Application categories:

  • OEM Integration
  • Turnkey Solutions
  • Automotive Production
  • Continuous Material Production
  • Electronic Assemblies Production
  • Metal Processing Industry
  • Welding Processes Supervision

Case studies:

  • 3D point cloud: Grinding wheel QuellTech GmbHQuality Inspection of Grinding Wheels by 3D Measurement8. October 2022 - 11:03
  • Turnkey solution to detect surface defects Detection of Surface Defects as a Turnkey Solution2. August 2022 - 12:22
  • Thickness Measurement on a carrier surface Coating thickness measurement in materials testing2. June 2022 - 11:24
