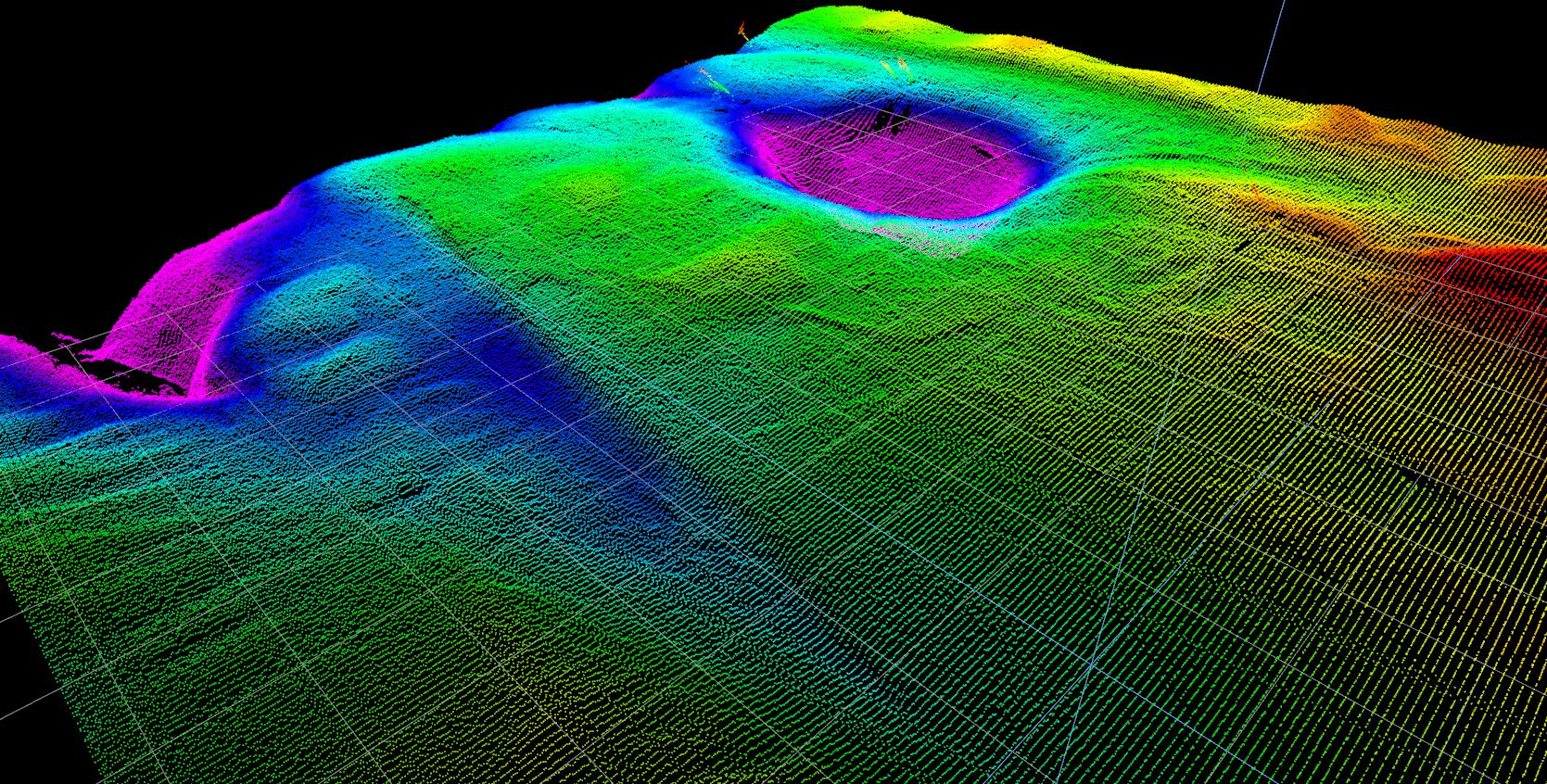

The rugged laser measuring equipment of QuellTech GmbH offers implementation of high-speed, contact-free inspection procedures even in a fully automated run. Weld seams can be optically examined to 100% giving a visual record. This includes parametric defect highlighting for automatic pass/fail results with live and post-weld measurement for weld defect criteria, HiLo and re-entrant angle.
Pipe end bevels can be inspected in full while simultaneously measuring the ovality, generating fit-up sequencing and external Hilo analysis to reduce time, wastage and improve the integrity of the welds. This information is combined with the internal weld scan as a complete package of data for each weld.
The QuellTech laser sensor family Q4 or Q5 used for these tasks is generally mounted on an arm of a rotational axis, to scan along the complete 360° angle of the internal surface in a sequence of strips. The Q4 sensors can also be used to control the weld seam tracking itself for rapid setup and ease of use. Even during a project, the range and scope of the Q Series sensor demonstrates the advantages of a modular system to quickly adapt to project needs, where the smallest system has provided fast analysis of pipes as small as 105mm. The low power, with standard communication protocols, enable battery powered systems to transmit wireless data to other systems for review and cloud back up.
