QuellTech Laser Scanner Specifications
Basic, Medium and High-End Entry

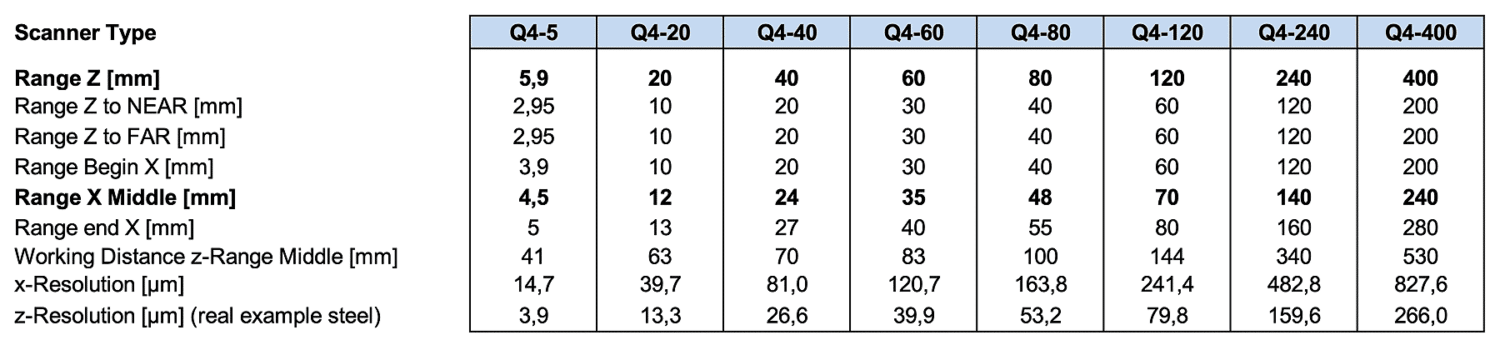

Q4 Laser Scanner Basic
| Scanner Type | Q4-5 | Q4-20 | Q-40 | Q4-60 | Q4-80 | Q4-120 | Q4-240 | Q4-400 |
|---|---|---|---|---|---|---|---|---|
| Range Z [mm] | 5,9 | 20 | 40 | 60 | 80 | 120 | 240 | 400 |
| Range Begin X [mm] | 3,9 | 10 | 20 | 30 | 40 | 60 | 120 | 200 |
| Range X Middle [mm] | 4,5 | 12 | 24 | 35 | 48 | 70 | 140 | 240 |
| Range End X [mm] | 5 | 13 | 27 | 40 | 55 | 80 | 160 | 280 |
| Working Distance z-Range Middle [mm] | 41 | 48 | 58 | 68 | 78 | 98 | 158 | 238 |
| Resolution in X [µm] | 7,8 | 21 | 41 | 60 | 83 | 121 | 241 | 414 |
| Resolution in z [µm] example on steel | 3,9 | 7 | 13 | 20 | 27 | 40 | 80 | 113 |
Q5 Laser Scanner Medium
| Scanner Type | Q5-D5 | Q5-D30 | Q5-D46 | Q5-D60 | Q5-D120 | Q5-D300 | Q5-D800 | Q5-D1000 |
|---|---|---|---|---|---|---|---|---|
| Range Z [mm] | 3 | 30 | 46 | 60 | 120 | 300 | 800 | 1090 |
| Range Begin X [mm] | 6 | 33 | 42 | 87 | 123 | 268 | 599 | 577 |
| Range X Middle [mm] | 6,4 | 38 | 53 | 106 | 163 | 329 | 1062 | 1294 |
| Range End X [mm] | 6,8 | 42 | 62 | 121 | 203 | 413 | 1657 | 2010 |
| Working Distance z-Range Middle [mm] | 31 | 106 | 90 | 106 | 197 | 400 | 744 | 920 |
| Resolution in x [µm] | 5 | 18 | 26 | 52 | 80 | 161 | 519 | 632 |
| Resolution in z [µm] numerical, 6 subpixel | 0,1 | 0,8 | 1,3 | 1,4 | 4,1 | 4,2 | 36,9 | 79 |
Q6 Laser Scanner High End
| Scanner Type | Q6-D50 | Q6-D90 | Q6-D185 | Q6-D250 | Q6-D410 | Q6-D700 | Q6-D1100 |
|---|---|---|---|---|---|---|---|
| Range Z [mm] | 14 | 15 | 15 | 150 | 250 | 300 | 800 |
| Range X Begin [mm] | 47 | 78 | 144 | 152 | 220 | 414 | 427 |
| Range X Middle [mm] | 50 | 82 | 148 | 181 | 290 | 497 | 840 |
| Range X End [mm] | 52 | 84 | 152 | 209 | 362 | 582 | 1.280 |
| Working Distance z-Range Middle [mm] | 140 | 172,5 | 172,5 | 400 | 400 | 680 | 744 |
| Resolution in x [µm] | 12,21 | 20,02 | 36,13 | 44,19 | 70,80 | 121,34 | 205,08 |
| Resolution in z [µm] numerical, 6 subpixel | 0,30 | 0,50 | 0,70 | 1,70 | 2,20 | 3,78 | 10,34 |
