Initial situation

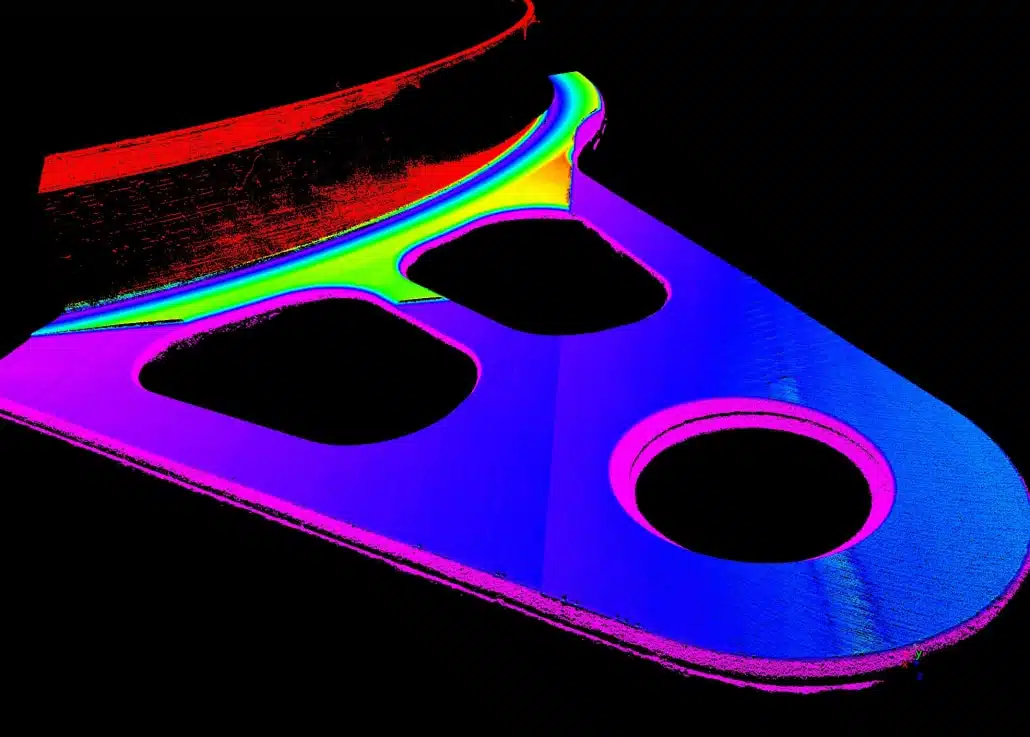

The Quelltech model Q5 disposes of an adequate resolution in X and Z direction and proves to be able to verify the planarity tolerances and to measure the size of defects. Meanwhile a precise rotary axle, used as guiding element, moves the scanner over the surface to be evaluated. Interfering artefacts caused by the glossy finish are suppressed by particular algorithms integrated within the software. As an encoder value is permanently supplied by the rotary axle, the position of each scanner profile within the point cloud can accurately be determined. For calculation of the planarity, the measured point cloud is defined as zero level, so possible trends with respect to the height -e.g. an inclined plane- can be compensated.
Before implementation of the QuellTech solution, only manual inspections were possible, on the basis of random sampling. Thanks to the new 100% inline inspection, rejects can be discovered at a n early stage and automatically removed from the production process. Furthermore, a close monitoring of the trends could be used for set-up of a plan for preventive maintenance of the existing machine.
